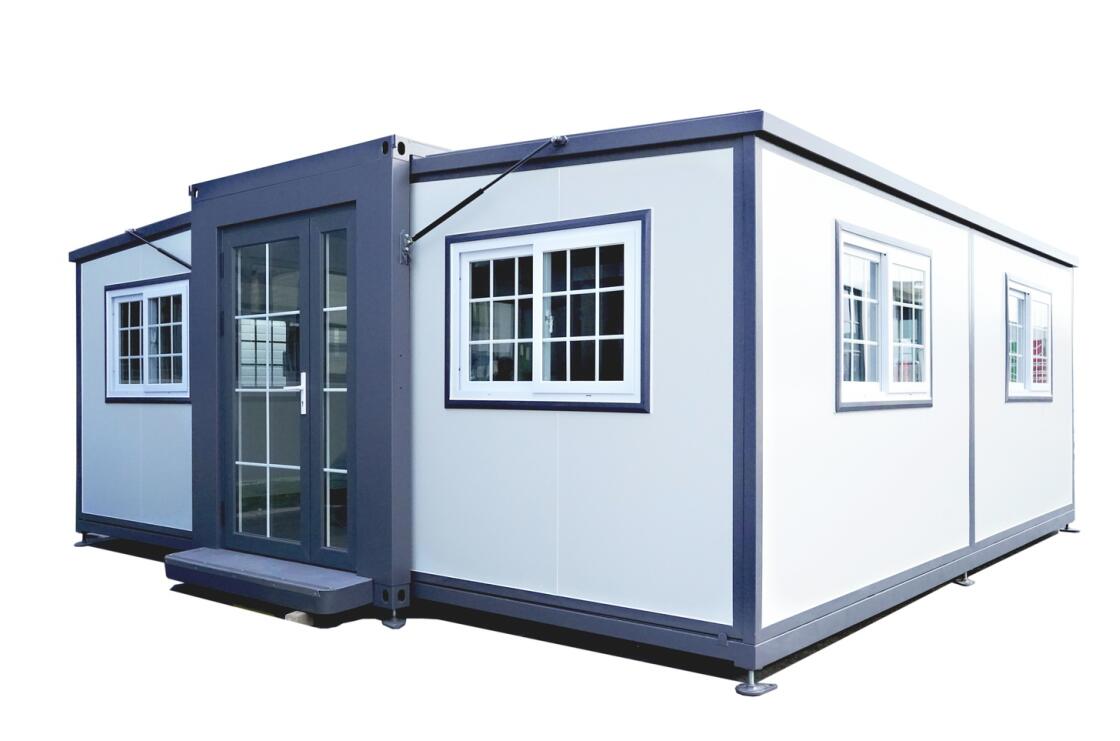

Prefab Modern Container Home – Luxury Expandable Villa with AS/CE Compliance
Prefab Modern Container Home – Luxury Expandable Villa
Crafted for Comfort, Certified for Compliance, Built to Move
Engineered for clients who demand high-specification housing without compromising mobility, this Prefab Modern Container Home is a fully expandable, smartly finished movable villa ideal for residential, mall, or pop-up deployment. Built from a galvanized steel structure and reinforced with flame-retardant wall and roof insulation, this model offers maximum safety, thermal efficiency, and structural integrity.
Certified under AS 4964, CE, and AS/NZS 1530, it opens global market access and ensures code-level confidence. The design includes pre-fitted plumbing, electricals, and accessories to support rapid deployment and real-time occupancy.
Technical Overview
| Attribute | Detail |
|---|---|
| Material | Steel |
| Product Type | Steel Structure – Prefab Housing Unit |
| Application | Residential, Mall Installations, Mobile Living |
| Design Style | Modern Craftsman, Minimalist Functionality |
| Shipping Size | L5900 × W2030 × H2515 mm |
| Expanded Size | L6140 × W6150 × H2515 mm |
| Net Internal Expansion | L5430 × W6000 × H (2270–2070) mm |
| Structure Frame | High-strength galvanized steel |
| Roof | 0.4*40 Flame-Retardant Aluminum Magnesium Manganese Sandwich Panel |
| Wall Panel | 0.4*50 Flame Retardant Foam Insulated Wall Panel |
| Flooring | 15mm Ecological Board + 2mm PVC Wear-Resistant Leather |
Doors, Windows & Fixtures
| Component | Specification |
|---|---|
| Exterior Doors | Broken Bridge Aluminum Double Entry Door |
| Bathroom Window | Broken Bridge Aluminum External Opening Window |
| Toilet Door | WPC (Wood Plastic Composite) Door |
| Windows | Double-Layer Tempered Glass Sliding Plastic-Steel Lattice |
| Door Stop + Rubber Strip | WPC Integrated |
| Door Step | Steel with Anti-Slip Pad |
| Waterproof Groove (Entry) | Galvanized Steel |
| Hydraulic Strut | 3500N Pressure |
| Wire Rope | φ6mm Stainless Cable |
Bathroom & Sanitation Assembly
| Component | Specification |
|---|---|
| Toilet | Horizontal Row Type |
| Wash Basin Cabinet | 550mm PVC |
| Mirror Cabinet | PVC |
| Shower Head & Valve | Stainless Steel with Lift Rod |
| Floor Drain | Stainless Steel |
| Shower Fender | PVC |
| Fan | Silent Exhaust Fan (Low dB Range) |
| Hot/Cold Valve | Stainless Steel 304 |
| Toilet Brush & Paper Box | Aluminum Alloy |
| Soap Holder | Aluminum Alloy |
Piping, Bearings & Assembly Hardware
| Item | Detail |
|---|---|
| Hot/Cold Water Piping | PPR, 20mm (0.787 in) |
| Drainage Pipe | PPR, 40mm–50mm (1.57–1.97 in) |
| Bearings | 6204 Grade |
| Pulley Block (Hinge) | 1200LBS Capacity |
| Sealant | Neutral, Eco-Friendly |
Compliance & Certification
- AS 4964 Certified – Compliance for flame retardancy of textile and composite linings
- CE Marked – European Conformity for export-grade structures
- AS/NZS 1530 – Fire compliance across Australia/New Zealand safety standards
These certifications ensure the structure meets international fire safety, environmental, and material compliance benchmarks for occupancy or commercial deployment.
Functionality Highlights

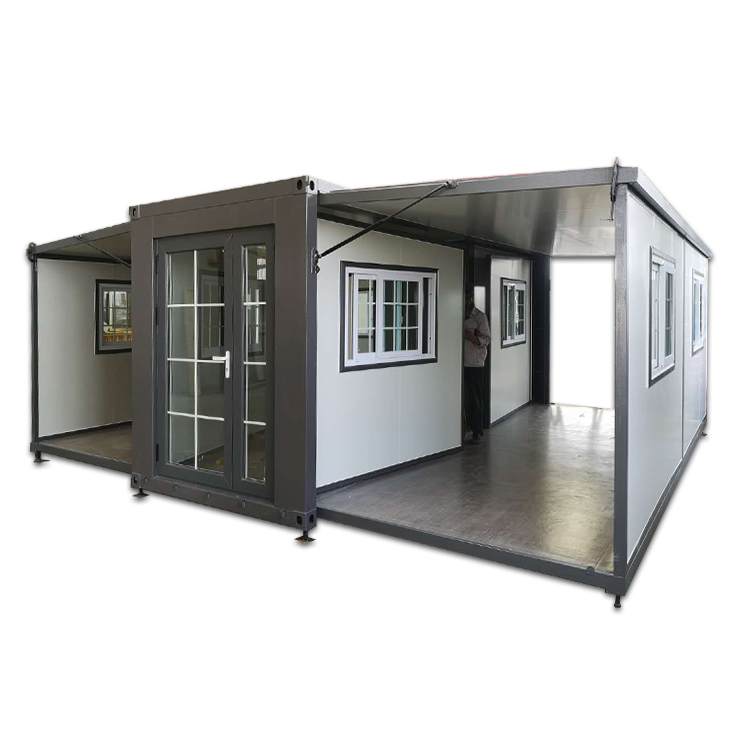

- Expandable Floor Plan: From compact shipping size to luxury living area in minutes
- Silent Air Circulation: Installed with a low-noise, high-efficiency exhaust fan system
- Thermal & Acoustic Insulation: From wall to roof, designed to retain climate control
- Turnkey Sanitary Fit-Out: Delivered with pre-installed shower, basin, drains, and piping
- Aesthetic Harmony: Double-layer glass and steel accents deliver a premium modern finish
Ideal Applications
- Luxury Residential Housing (Urban or Off-Grid)
- Commercial Mall Installations / Retail Pop-Ups
- Movable Office & Event Accommodation Units
- Emergency Housing for Remote Operations / Government Relief
- Investment Properties & Airbnb-Style Rentals
Supply Capability
| Production Capacity |
|---|
| Up to 2,000 Sets Per Month |
Each unit is precision-fabricated and packaged in steel box containers for secure handling and deployment. No additional foundation or groundwork is required.
